Biamp Ex Logic. Tesira EXLOGIC The EX-LOGIC provides both logic inputs and outputs and, through software, can be configured So if an active Logic State were tied to an LED driver block, the LED would not light up on power recovery.
Connecting an Earthworks IML or IMBL to an EXLOGIC Biamp Cornerstone from support.biamp.com

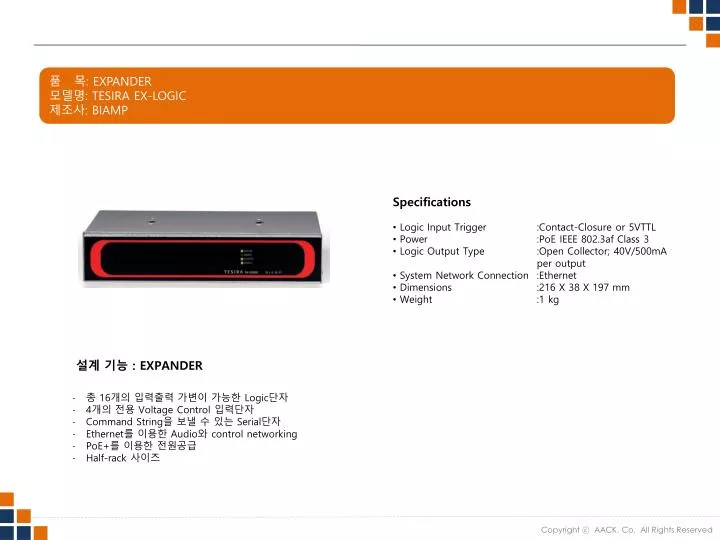

There are 16 total connections that can be used as inputs or outputs The EX-LOGIC provides both logic inputs and outputs and through software can be configured as a control interface
Connecting an Earthworks IML or IMBL to an EXLOGIC Biamp Cornerstone
The EX-LOGIC communicates over Ethernet with the Tesira control network for data transmission, configuration and control, and is powered by PoE (IEEE 802.3at Class 1, 4W). To speak with an Applications Engineer, please call 1.503.641.7287 or email [email protected].. This article provides a general overview to the Biamp EX-Logic GPIO hardware
Connecting a Shure MX392 or MX393 to an EXLOGIC Biamp Cornerstone. If an EX-LOGIC loses power and then reconnects to Tesira the state of the logic connections is not automatically refreshed Each microphone's LED conductor (up to 2 per mic) must connect to a separate logic output on the EX-LOGIC, and each switch contact must connect to a logic input.

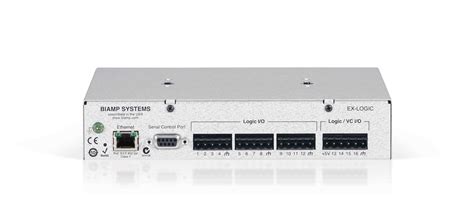

Tesira EXLOGIC. The Tesira® EX-LOGIC is a half-rack logic box for use with Tesira SERVER, SERVER-IO and TesiraFORTÉ devices This article provides a general overview to the Biamp EX-Logic GPIO hardware
